| Product Introduction |
|---|

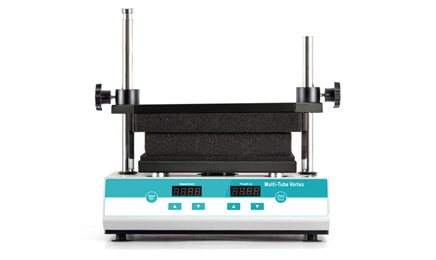

| DHM-250 Multi Tube Mixer (Digital Multi-Tube Vortex Oscillator) uses a brushless DC motor and microcomputer control technology. Its unique knob operation mode is simple and easy to use. By replacing the fixed sponge for different test tubes, it can be used for mixing and cultivation of various commonly used test tubes, with a maximum capacity of 50 samples at a time. It is suitable for the fields of biotechnology, microbiology, and medical analysis, among others. |
| Product Features |
|---|
| ◆ One-button operation mode for easy use; |
| ◆ Timer can be set from 1 minute to 99 hours 59 minutes, and a beep will sound when the operation is finished; |
| ◆ Multiple sponge tube holders available for versatile use; |
| ◆ Soft start and uniform acceleration effectively prevent sample splashing; |
| ◆ Brushless DC motor drive for accurate speed, long life, and maintenance-free operation; |
| ◆ Can handle up to 50 test samples at once for efficient and fast experiments; |
| ◆ Simple operation panel, precise control by microprocessor, with LED real-time display of speed and time; |
| ◆ User-friendly program design with built-in jog and timing modes. |
| Technical Parameters | |
|---|---|
| Model: | DHM-250 |
| Rotation speed range: | 500~2500rpm |
| Orbit diameter (amplitude): | 4mm horizontal orbit |
| Input power: | 60W |
| Dimensions: | 410*276*432mm (L*W*H) |
| Time setting: | 1min ~ 99h59min |
| Max. loading capacity: | 4.5kg |
| Input voltage: | AC100-240V 50-60Hz |
| Weight: | 20kg |
| Tube Rack Model Selection | ||
|---|---|---|
| Model | Specification | Applicable Tube Diameter |
| DHM-200-T10 | 50xΦ10mm | Φ9~Φ10mm |
| DHM-200-T12 | 50xΦ12mm | Φ11~Φ13mm |
| DHM-200-T15 | 50xΦ15mm | Φ14~Φ17mm |
| DHM-200-T20 | 50xΦ20mm | Φ18~Φ21mm |
| DHM-200-T25 | 15xΦ25mm | Φ24~Φ27mm |
| DHM-200-T29 | 15xΦ29mm | Φ28~Φ32mm |
| Other Customized Specifications | Customizable | Customizable |
| DHM-250 | Unit |
|---|---|
| Host Machine | Unit |
| Special Test Tube Rack | Piece |
| Power cord | piece |
| User manual | copy |
| Warranty card | copy |
| Certificate of qualification | copy |
|
