| Product Introduction |
|---|

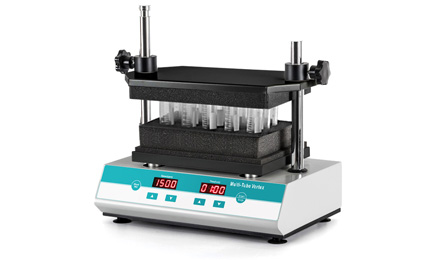

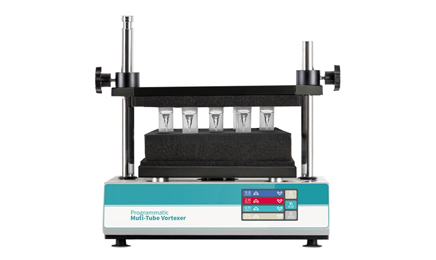

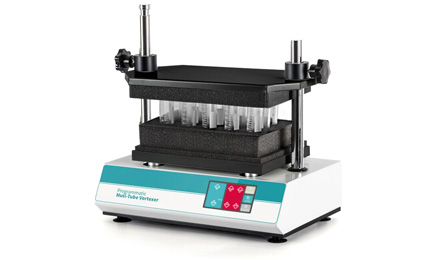

| DHM-300T Multi sample Mixer adopts a brushless DC motor and microcomputer control technology. Its unique full-touch screen operation mode is simple and easy to use, with built-in uniform speed, impact, and programming modes. By replacing different tube fixed sponges, it can mix and cultivate various commonly used test tubes, with a maximum of 50 samples processed at a time. It is suitable for fields such as genetics, testing, biology, microbiology, and medical analysis. |
| Product Features |
|---|
| 1. LCD touch screen with graphical display for intuitive and convenient operation, microprocessor for precise control. |
| 2. DC brushless motor for precise speed control, long lifespan, and maintenance-free operation. |

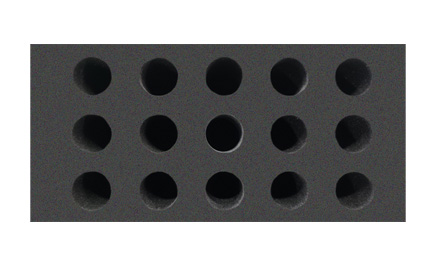

| 3. Various sponge tube holders available for adaptation to multiple commonly used tubes, with wide applications. |
| 4. Soft start for uniform acceleration and effective prevention of sample splashing. |
| 5. Can handle up to 50 samples at once, high throughput for efficient and rapid experiments. |
| 6. New impact mode with high-speed forward and reverse rotation settings for enhanced mixing efficiency. |
| 7. New programming mode for convenient multi-segment processing of special materials, with support for up to 8 segments and cycle operation. |
| Technical Parameters | |
|---|---|
| Model: | DHM-300T |
| Rotation Speed Range: | 300~3000rpm |
| Orbit Diameter (Amplitude): | 4mm horizontal orbit |
| Timing Range: | 1min ~ 99h59min |
| ★Forward Rotation Time: | 1~99S |
| ★Reverse Rotation Time: | 1~99S |
| ★Data Storage: | 15 groups |
| ★Programming Mode: | Maximum of 8 segments, with cycle operation |
| Input Power: | 100W |
| Dimensions: | 410*276*432mm (L*W*H) |
| Maximum Load Capacity: | 4.5kg |
| Input Voltage: | AC100-240V 50-60Hz |
| Weight: | 21kg |

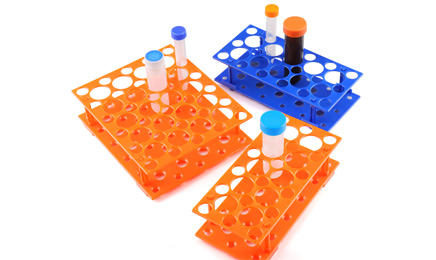

| Selection of Test Tube Rack Models | ||
|---|---|---|
| Model | Specification | Applicable Test Tube Diameter |
| DHM-200-T10 | 50xΦ10mm | Φ9~Φ10mm |
| DHM-200-T12 | 50xΦ12mm | Φ11~Φ13mm |
| DHM-200-T15 | 50xΦ15mm | Φ14~Φ17mm |
| DHM-200-T20 | 50xΦ20mm | Φ18~Φ21mm |
| DHM-200-T25 | 15xΦ25mm | Φ24~Φ27mm |
| DHM-200-T29 | 15xΦ29mm | Φ28~Φ32mm |
| Other Customized Specifications | Available upon request | Available upon request |
| DHM-300T | Unit |
|---|---|
| Host Machine | Unit |
| Special Test Tube Rack | Piece |
| Power cord | piece |
| User manual | copy |
| Warranty card | copy |
| Certificate of qualification | copy |
|
